Description
- A fully self-contained system,Tech-Air® 3 does not require any external connections or sensors on the motorcycle for the system\ to operate Tech-Air 3 if a fully autonomous active airbag system

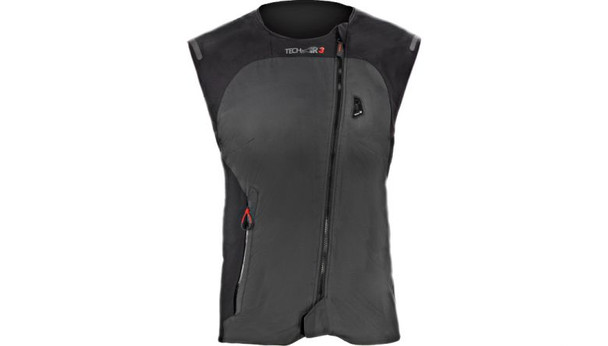

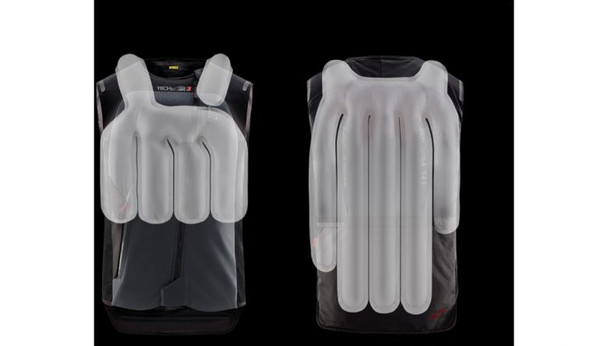

- The Tech-Air 3 system is designed to be worn over as an ‘over’ the jacket solution; upon inflation the system provides protective coverage to the motorcycle rider’s chest and back for effective upper body protection
- Tech-Air 3 incorporates 6 integrated sensors (3 accelerometers, 3 gyroscopes or 1 triaxial gyroscope and 1 triaxial accelerometer) to provide the best crash monitoring performance in a variety of dynamic riding situations
- The Tech-Air 3 Airbag System activates automatically via the magnetic zip closure
- ECU and electronics are located in a waterproof housing for proven wet weather performance
- Chassis is constructed with a water-resistant treatment for effective all-weather performance
- Packable design means the system can be stored in a backpack or under a bike’s seat when not in use
- Equipped with a diagonal zipper to provide complete front chest coverage while also concealing the inner airbag
- The magnetic zip closure has been designed for ease of use and for providing a secure closure system to the airbag garment
- An LED display on the front chest continuously indicates the airbag’s operational status
- An internal magnetic button facilitates easy positioning of the airbag across the chest when riding
- Strategically positioned stretch panels on both sides of the abdomen to accommodate the expansion of the airbag in the event of a crash
- Perforated back zone for improved breathability, with internal air channels for enhanced airflow
- Integrated back protector pocket on the back to house additional passive back protection
- Tech-Air 3 incorporates Alpinestars’ Pro 2nd Generation compact Electronic Control Unit (ECU) embedded in the upper back of the Tech-Air 3 vest
- Tech-Air 3 uses the Tech-Air® 5 street algorithm which provides active protection in street riding scenarios and a variety of riding conditions, even when stopped
- Upgradable system firmware, accessible via the Tech-Air® App
- Bluetooth® low energy (BLE 5.0) connectivity with the Tech-Air App shows the system’s status, the battery status and riding data
- Tech-Air 3 uses an integrated, certified lithium ion battery, with a battery life of 40 hours and a recharge time of approximately 4 hours
- The LED display also incorporates a haptic alert, which vibrates to confirm the system is armed and alerts the rider when the battery is running low
- The argon gas canister that provides the inflation gas for the airbag’s deployment is housed in an ergonomic case on the right side of the lower back of the rider
- Tech-Air’s ECU seal-protection ensures all-weather performance and is certified to function between -20°C and +40°C
- The canister housing, electronic wiring, and the airbag are easily removable
- The canister can be replaced by any Alpinestars dealer
- The vest is washable
- The ECU is CE-certified
- The Argon inflator cartridge is CE certified to ISO26263 confirming compliance with the safety standard and certifying that the cartridges can be safely handled and serviced
- Impact protective garment 17092 Class C (outer garment), with the outer shell constructed from water resistant material
- The following standards apply to this product: full chest and full back Protection from the airbag is Category II CE Certified to the 425/2017/EEC European Personal Protective Equipment (PPE) Regulation, according to relevant part of EN1621-4:2013 airbag certification standard, which guarantees an impact protection performance of not less than five seconds after the activation
